| MOQ: | 20Ton |
| Price: | Negotiable |
| Standard Packaging: | 25KG per kraft paper bag with PP inner. 20 metric tons per 20GP |
| Delivery Period: | 15 days after be paid |
| Payment Method: | L/C, , D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Capacity: | 40000 Metric Ton/Metric Tons per Month |
KE3386AC bakelite powder phenolic moulding compound

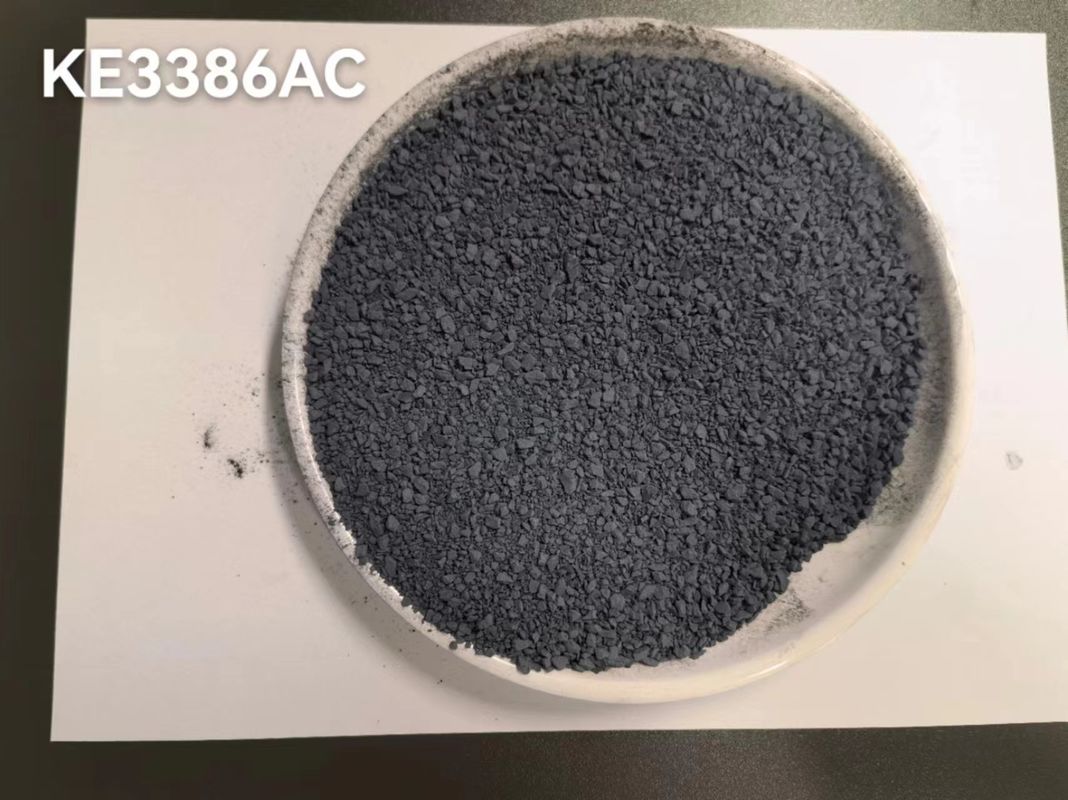

1. the picture of phenolic molding compound powder
2. the introduction of bakelite powder
The general phenolic molding plastics is a suitable material for molding by using phenolic resin or modified resin as its binding agent and wood powder and mineral as its filler ,this kind of plastics is applicable to the manufacturer of low voltage electrical insulation structures, daily utensils parted and so on, the shape of the product is granular.We can provide different color products according to customer needs.
1).Properties
| Property | Test Method | Value | Unit |
| Relative density | GB/T1033.1-2008 | <=1.40 | G/CM3 |
| Flexural strength | GB/T9341-2000 | >=80 | Mpa |
| Charpy impact strength | GB/T1043.1-2008 | >=4.5 | KJ/M2 |
| Charpy notched impact strength | GB/T1043.1-2008 | >=1.7 | KJ/M2 |
| Temp.of deflection under load | GB/T1634.2-2004 | >=160 | ℃ |
| Insulation Resistance | GB/T1410-2006 | >=1011 | Ω |
| Electric strength | GB/T1408.1-2006 | >=10 | KV/mm |
| Dissipation factor | GB/T1409-2006 | <=0.05 | - |
| Volume resistivity | GB/T1410-2006 | >=1012 |
Ω*cm
|
2). Remark
Bakelite electric parts
Other name:bakelite electric parts, phenolic molding compound,phenolic moulding powder.
Model NO.:KE3386AC
Molding method: COMPRESSION molding.
Color:black (others are available according to customers' requirement.)
3. Application of Product
|
|
