| MOQ: | 20tons |
| Price: | Negotiable |
| Standard Packaging: | Waterproof |
| Delivery Period: | 25 days |
| Payment Method: | 100% TT, L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Capacity: | 60000ton |
Melamine moulding compound is an advanced thermosetting plastic material used to manufacture a variety of commercial and industrial components. It is composed mainly of melamine and formaldehyde which react through condensation polymerization. Upon heating and compression, the molecules undergo a chemical reaction and crosslink into an infusible three-dimensional network with heat resistance properties.
The production process involves dry blending melamine powder, formaldehyde, fillers and additives in precisely controlled ratios. Common fillers include wood flour and pulp to improve texture and reduce costs. Additives enhance characteristics such as flame retardancy, electrical resistance and mechanical strength. The blended powder is then compressed into mould cavities under high pressure. Application of heat completes the molecular curing process, forming a tough, rigid melamine plastic part of the desired shape.
Melamine moulding compound offers superior performance compared to ordinary plastics. It exhibits excellent heat resistance up to 150°C without discoloration or decomposition. The material possesses very high electrical resistivity, making it suitable for electrical and electronic insulators. It also demonstrates high mechanical strength, resilience and durability under stress. Chemical resistance against acids, alkalis and solvents allows use in demanding environments. Machinability of the cured parts enables fast fabrication of complex designs.
Thanks to the above properties, melamine moulding finds wide applications in electrical switchboards, household appliances, telecommunication equipment, industrial machinery components and decorative surface coatings. It provides durable, affordable solutions for manufacturers where heat proofing, electrical insulation and corrosion resistance are critical requirements. The material conforms to various safety standards for appliance and device construction.
Moulding condition
| Temperature | 150-180°C |
| Pressure | 25-40Mpa |
| Curing time | 35-50’S |
| 1 | Gravity | D2525,≤ | 1.6 | GB1033 |
| 2 | Specific volume | ml/g≤ | 3 | |
| 3 | Volatile matter | %,≤ | 3.8 | GB/T13455 |
| 4 | Water absorb (cold) / (hot) | mg,≤ | 50/65 | GB1034 |
| 5 | Shrinkage | % | 0.65 | GB13454 |
| 6 | Distortion temperature | °O,≥ | 155 | GB1634 |
| 7 | Flowing | mm | 194 | GB13454 |
| 8 | Impact Strength(notch) | KJ/m2,≥ | 1.9 | GB1043 |
| 9 | Bending Strength | Mpa,≥ | 80 | GB9341 |
| 10 | Insulation Resistance after 24h in water | MΩ≥ | 105 | GB1410 |
| 11 | Dielectric strength | MV/m,≥ | 9.0 | GB1408 |
| Product Name | Technical Parameters |
|---|---|
| Melamine Formaldehyde Resin Powder | Packaging: 20 Kg Bags pH Value: 7.0-8.0 Shelf Life: 1 Years Appearance: White Powder Storage Temperature: Cool And Dry Applications: Melamine Tableware |

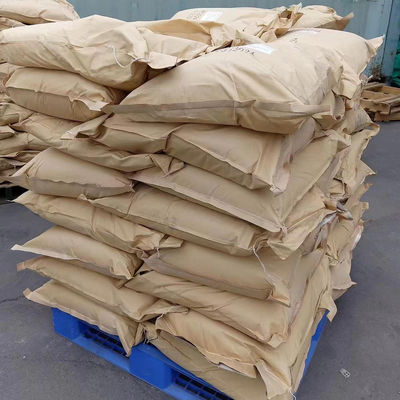

Packing and Shipping:

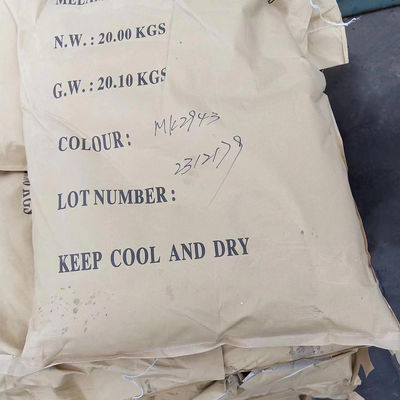

Packing: 20kg , bag.
