| Place of Origin: | Jiangxi, China |
|---|---|
| Brand Name: | OEM |
| Certification: | SGS |
| Model Number: | A5 |
| Minimum Order Quantity: | 20 Metric Tons |
| Price: | Negotiable |

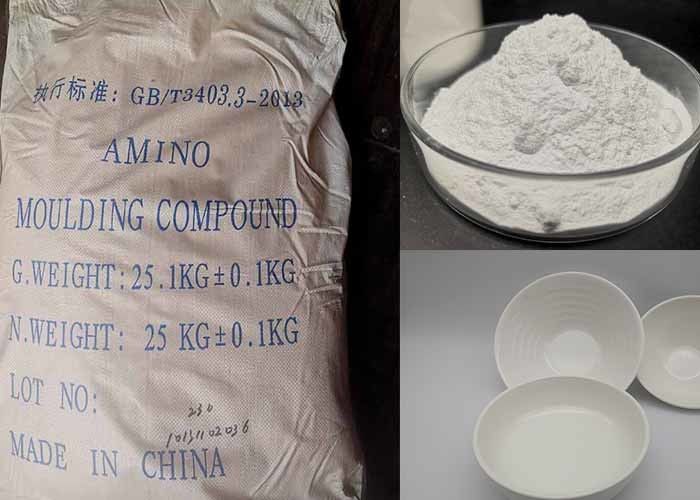

| Packaging Details: | 25kg PP woven bag with inner waterproof PE film. |
| Delivery Time: | 15 days after be paid |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 6000 Metric Ton/Metric Tons per Month |
| Synonym1: | Melamine Moulding Compound | Used For: | Tableware, Kitchen Utensiles |
|---|---|---|---|
| HS CODE: | 390930 | Grade: | 100% MELAMINE FOOD GRADE |
| Feature: | Fine Powder | Applicant: | Melamine Plate, Bowl, Tray, Spoon, Cup |
| High Light: | 100% Pure Melamine Moulding Compound,Melamine Moulding Compound For Tableware,Melamine Resin Powder For Tableware |
||
390930 100% Pure Melamine Moulding Compound Resin Powder For Dinnerware
Product description
Melamine moulding compounds ( thermosetting plastics) are amino moulding compounds composed of melamine formaldehyde and alpha cellulose as filling material with the addition of lubricant , hardening agent & pigments.
Thermosets offer many advantages over basic thermoplastics and are suitable for compression , transfer or injection moulding. They are produced in a precise, brilliant, light fastness and vibrant range of colors They are available in powder (which gives much better surface).
Melamine moulding compounds are strong, glossy, very very durable and highly resistant to staining. They have better resistance to heat, solvents, chemicals, moisture, electricity and scratching than urea moulding compounds.
Specification:
| Parameter | Value | Unit | Standard |
| Appearance | Solid – granular/powder form | ||
| Colour |
Different according to customer requirements
|
||
| Flow |
(160 – 220)* (100 – 140)** |
mm x 10-2 | |
| CT |
(36 – 44)* (50 – 60)** |
sec | |
| Bulk density | 0.600 – 0.650 | gm/cm3 | ISO 60 |
| Specific weight | 1.4 - 1.5 | gm/cm3 | Din 7708 |
| Humidity (60 0C) | 2 max | % | |
| Volatile matter (110 0C) | 4 max | % | |
| Grain size | According to customer requirements | mm | |
| Shrinkage | 0.9 max | % | Din 7708 |
| Water absorption | ≤ 200 | mg | ISO 14528 |
| Mechanical Properties | |||
| 1- Stress at break |
( ≥ 40)* (≥ 50)** |
Mpa | ISO 14528 |
| 2- Flexural strength |
(≥ 80)* (≥ 90)** |
Mpa | ISO 14528 |
| 3-Charpy Impact strength |
(≥ 5)* (≥ 6)** |
KJ/m2 | ISO 14528 |
| 4- Charpy Notched Impact strength |
(≥ 1.2)* (≥ 1.4) ** |
KJ/m2 | ISO 14528 |
| Thermal Properties |
|
|
|
| 1-Temperature of deflection under load Tf (1.8) | ≥ 155 | 0C | ISO 14528 |
| 2- Temperature of deflection under load Tf (8.0) | ≥ 110 | 0C | ISO 14528 |
| 3- Flammability (glow bar) , BH | ≤ BH2-10 | - | ISO 14528 |
| 4- Flammability (UL classification) | V-0 | Grade | UL 94 |
| Electrical Properties |
|
|
|
| 1-Surface Resistivity | ≥ 1010 | Ω | ISO 14528 |
| 2- Proof Tracking Index | ≥ 600 | - | ISO 14528 |
| Brabender Plastograph | Plastogram | - | Din 53764 |
| Colour testing | Colorimeter(x rite 8400) | - | |
* Compression moulding.
** Injection moulding.
Moudling techniques
| Preheating* condition | Moulding condition* | ||||
| Temperature,0C | Time, sec | Temperature,0C | Pressure Kg/cm2 | Curing time sec/mm | Time of production |
| 80-90 | 30-60 | 160 – 170 | 400 min | 11 – 12 | According to shape , thickness , ……. of the product |
Major application areas
• Melamine thermosets are approved for contact with foodstuffs and they don't affect the food's flavor even at high temperatures so they are used in kitchen, utensils and dinner ware.
• Bathroom accessories and electrical components.
• Precision medical components.
Packing, handing, storage:
| Packing: |
|
|
Handling:
|
|
|
Storage:
|
|
