| MOQ: | 21 Metric Tons |
| Price: | Negotiable |
| Standard Packaging: | 25kg/20kg PP woven bag with inner waterproof PE film. |
| Delivery Period: | 15 days after be paid |
| Payment Method: | L/C, T/T |
| Supply Capacity: | 6000 Metric Ton/Metric Tons per Month |
A5 MMC Melamine Moulding Compound For Tableware
Product description
Melamine moulding compounds ( thermosetting plastics) are amino moulding compounds composed of melamine formaldehyde and alpha cellulose as filling material with the addition of lubricant , hardening agent & pigments.
Thermosets offer many advantages over basic thermoplastics and are suitable for compression , transfer or injection moulding. They are produced in a precise, brilliant, light fastness and vibrant range of colors They are available in powder (which gives much better surface).
Melamine moulding compounds are strong, glossy, very very durable and highly resistant to staining. They have better resistance to heat, solvents, chemicals, moisture, electricity and scratching than urea moulding compounds.
Specification:
| Parameter | Value | Unit | Standard |
| Appearance | Solid – granular/powder form | ||
| Colour |
Different according to customer requirements
|
||
| Flow |
(160 – 220)* (100 – 140)** |
mm x 10-2 | |
| CT |
(36 – 44)* (50 – 60)** |
sec | |
| Bulk density | 0.600 – 0.650 | gm/cm3 | ISO 60 |
| Specific weight | 1.4 - 1.5 | gm/cm3 | Din 7708 |
| Humidity (60 0C) | 2 max | % | |
| Volatile matter (110 0C) | 4 max | % | |
| Grain size | According to customer requirements | mm | |
| Shrinkage | 0.9 max | % | Din 7708 |
| Water absorption | ≤ 200 | mg | ISO 14528 |
| Mechanical Properties | |||
| 1- Stress at break |
( ≥ 40)* (≥ 50)** |
Mpa | ISO 14528 |
| 2- Flexural strength |
(≥ 80)* (≥ 90)** |
Mpa | ISO 14528 |
| 3-Charpy Impact strength |
(≥ 5)* (≥ 6)** |
KJ/m2 | ISO 14528 |
| 4- Charpy Notched Impact strength |
(≥ 1.2)* (≥ 1.4) ** |
KJ/m2 | ISO 14528 |
| Thermal Properties |
|
|
|
| 1-Temperature of deflection under load Tf (1.8) | ≥ 155 | 0C | ISO 14528 |
| 2- Temperature of deflection under load Tf (8.0) | ≥ 110 | 0C | ISO 14528 |
| 3- Flammability (glow bar) , BH | ≤ BH2-10 | - | ISO 14528 |
| 4- Flammability (UL classification) | V-0 | Grade | UL 94 |
| Electrical Properties |
|
|
|
| 1-Surface Resistivity | ≥ 1010 | Ω | ISO 14528 |
| 2- Proof Tracking Index | ≥ 600 | - | ISO 14528 |
| Brabender Plastograph | Plastogram | - | Din 53764 |
| Colour testing | Colorimeter(x rite 8400) | - | |
* Compression moulding.
** Injection moulding.
Moudling techniques
| Preheating* condition | Moulding condition* | ||||
| Temperature,0C | Time, sec | Temperature,0C | Pressure Kg/cm2 | Curing time sec/mm | Time of production |
| 80-90 | 30-60 | 160 – 170 | 400 min | 11 – 12 | According to shape , thickness , ……. of the product |
Major application areas

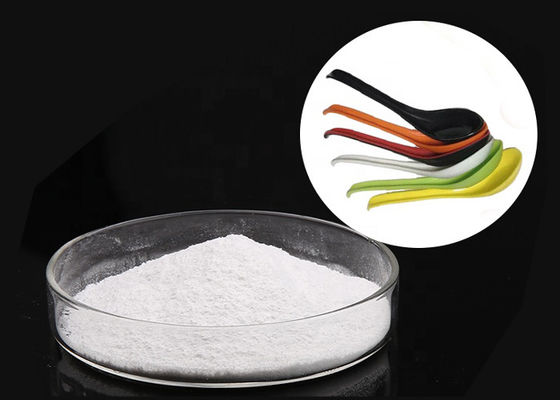

• Melamine thermosets are approved for contact with foodstuffs and they don't affect the food's flavor even at high temperatures so they are used in kitchen, utensils and dinner ware.
• Bathroom accessories and electrical components.
• Precision medical components.
Packing, handing, storage:
