Black Bakelite Powder Inject Sandwich Phenolic Resin Molding Comp
Inject Sandwich Phenolic Molding Comp
,Black Bakelite Powder
,Phenolic Resin Molding Comp

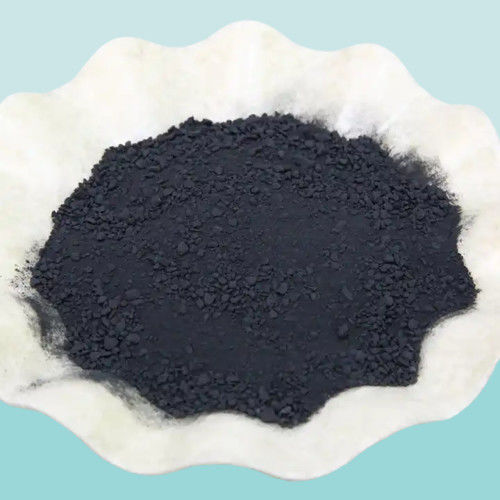

Black Phenolic Molding Compound /Bakelite Powder Inject Sandwich Phenolic Resin Molding Comp
phenolic moulding powder for panhandle
bakelite electric parts PF2A2-141
1. other name: bakelite electric parts, phenolic molding compound,phenolic moulding powder.
2. Model NO: PF2A2-141 .
3. Molding method: COMPRESSION molding.
4. Color: black (others are available according to customers' requirement.)
Technical Date Sheet
| Property | Test Method | Value | Unit |
| Relative Density | GB/T1033.1-2008 | ≤1.4 | G/CM3 |
| Volume resistivity | GB/T1410-2006 | ≥1012 | Ω*cm |
| Flexural strength | GB/T9341-2000 | ≥80 | MPa |
| Charpy Impact Strength | GB/T1043.1-2008 | ≥4.5 | KJ/M2 |
| Charpy Notched Impact Strength | GB/T1043.1-2008 | ≥1.7 | KJ/M2 |
| Temp.of deflection under load | GB/T1634.2-2004 | ≥160 | °C |
| Insulation Resistance | GB/T1410-2006 | ≥1011 | Ω |
| Electric strength | GB/T1408.1-2006 | ≥10 | KV/mm |
| Dissipation factor | GB/T1409-2006 | ≤0.05 | - |
| Moulding Shrinkage | ISO2577:1984 | 0.5-0.8 | % |
| Water absorption | GB/T1034-2008 | ≤40 | mg |
Application:
- production of insulation structures of low-votage electric.
- auto parts.
- electrical and appliance application.
- handles ,knob.phenolic moulding powder for panhandle
bakelite electric parts PF2A2-141
1. other name: bakelite electric parts, phenolic molding compound,phenolic moulding powder.
2.Model NO: PF2A2-141 .
3.Molding method: COMPRESSION molding.
4.Color: black (others are available according to customers' requirement.)
Packaging: PP/ Kraft bag with wet proof inner bag. 25kgs/bag
Storage period: 1 year kept in cool warehouse.
FAQ
Q1: Are you trading company or manufacturer?
A1: We are chemical factory in China.
Q2: How can I get the samples?
A2: We can provide you free sample for our existing products, the lead time is about 3 days. You just need to pay the sample delivery cost.
Q3: Can you provide relevant documents?
A3: Of course. We can provide Commercial Invoice, Packing List, Bill of loading, COA, and certificate of origin. If you have any special requirements, just let us know.
Q4: Do you accept third party inspection?
A4: Yes
